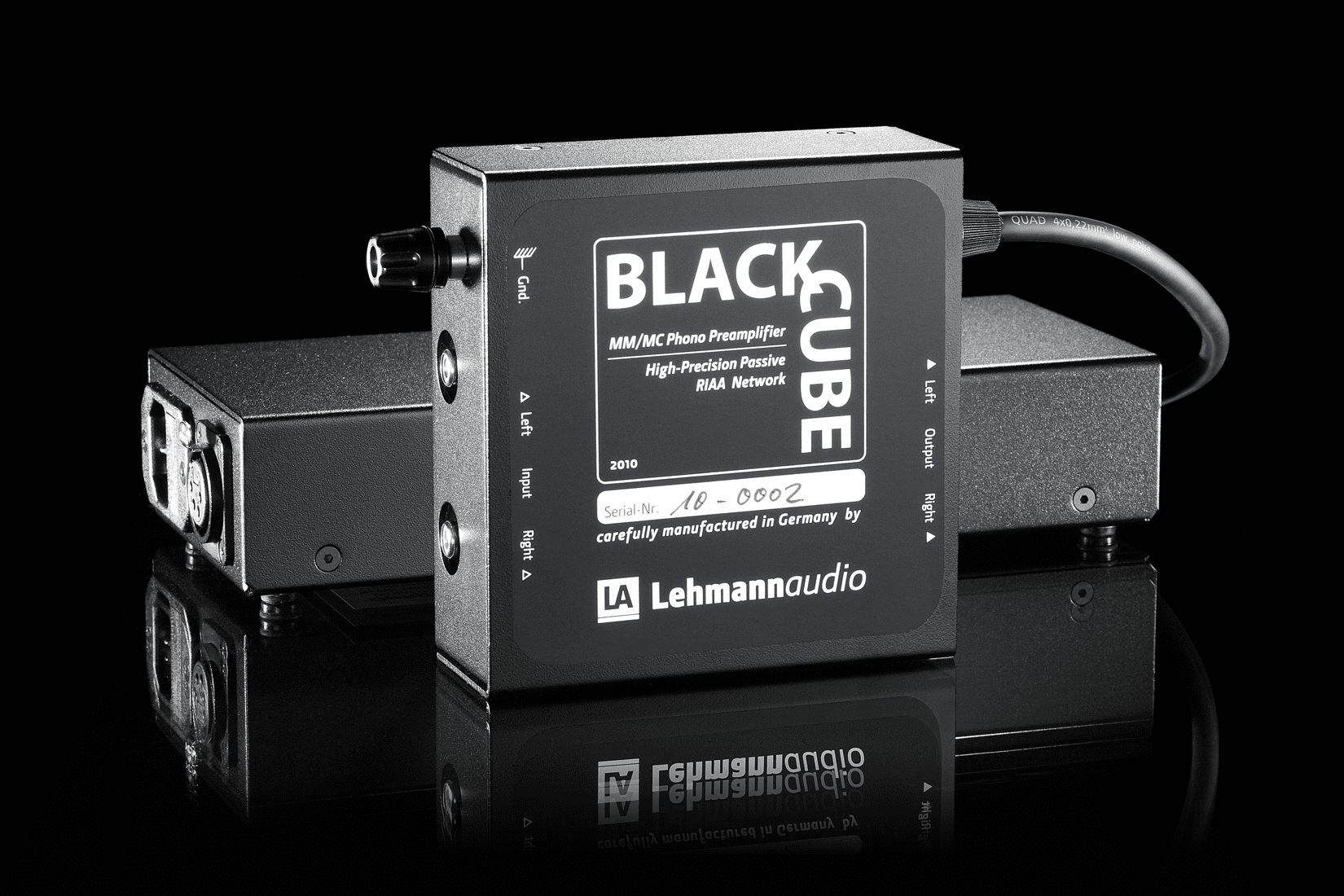

Lehmann Black Cube SE

Lehmann Black Cube SE

A cult object with power! The Lehmann Black Cube  phono stage is already legendary and world famous. The SE-version is equipped with the PWX power supply for an even better sound. Hear one now! Since their introduction in 1995, the Black Cube phono stages by Lehmann Audio have become cult objects for analogue-oriented music lovers. Countless positive reviews and awards, and an unrivalled customer satisfaction worldwide document this truly exceptional success.

A special 30 VA toroidal transformer of the PWX power supply is the main reason for the sonic performance achieved with the Black Cube SE. This transformer is not only over dimensioned but even sports a grounded isolation coil between the primary and secondary coil. The results: much more bass authority, a more liquid midrange as well as more openness. These sonic benefits are without any doubt the reasons that more and more music lovers choose the Black Cube SE right from the start.

The Lehmann Audio Black Cube SE phono stage is compatible with practically all available cartridges  on the market from  High Output MM to MC. Apart from the standard switch settings there is one onboard slot that can be fitted with a custom impedance to supply perfect termination even for the most exotic cartridges. No more need for expensive impedance plugs!

The input stages used in the Black Cube SE can also be found in top notch mixing consoles or in well known professional  microphone preamps. The entirely passive RIAA equalization network is realized with high precision foil capacitors. All resistors are of the low noise metal film variety. The switches for gain and load settings have gold plated contacts.

Because of the small outer dimensions the Black Cube SE can be placed next to  the turntable. This minimizes loss due to cable lengths.

Lehmann A udio always pays special attention to details: the cable between power supply and audio section is shielded and uses a Neutrik connector with gold plated contacts at the power supply side. The cases of both the power supply and the audio section are made of nonmagnetic material (aluminium) and are equipped with  a top cover coated with a special anti-resonance treatment.

Technical Data:



Gain at 1kHz: 40dB MM / 61dB MC
S/N ration (Eff. Unw.): 77dB MM / 69dB MC
Input Capacitance: 100pF
Input Impedances: 47 kΩ, 470Ω, 100Ω (Switchable)1 Slot For A Custom Load.
Output Impedance: <100Ω
RIAA Filter: Passive Equalization BetweenTo Linear Gain Stages
Inter-Channel Mismatch: Typ. 0.5dB
Power Consumption: < 3W; External PWX Power Supply(2x15V DC)
Dimensions (W x D x H): Audio Section – 113 x 108 x 45mm³ PWX Power Supply – 233 x 93 x 45mm³
Weight: Audio Section Approx. 0,4kgPower Supply Approx. 1,0kg

Black Cube SE £525
