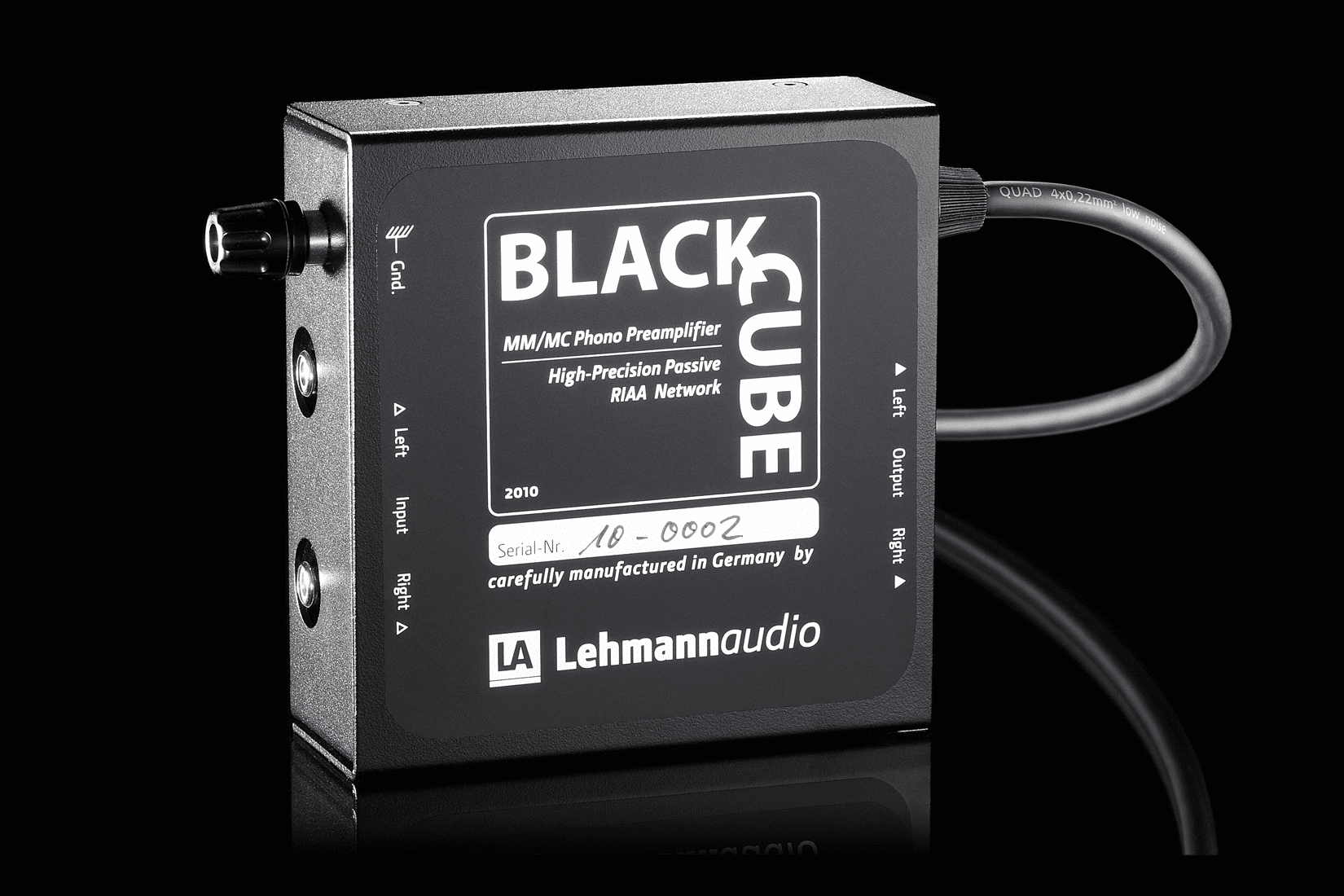

Lehmann Black Cube

Lehmann Black Cube

This is where it all started back in 1995, Norbert Lehmann’s first product was the Black Cube.  Seen as a reference point by many Audiophiles and Manufacturers alike, the Cube was eventually modified to 2006 specification and, once again, leads the field of mid priced Phono Pre Amplification. The Black Cube is produced in small numbers and sonically superior to mass industry products.

The Lehmann audio Black Cube phono stage is compatible with practically all available cartridges  on the market from High Output MM to MC. Apart from the standard switch settings there is one onboard slot that can be fitted with a custom impedance to supply perfect termination even for the most exotic cartridges. No more need for expensive impedance plugs!

The input stages used in the Black Cube can also be found in top notch mixing consoles or in well known professional  microphone preamps. The entirely passive RIAA equalization network is realized with high precision foil capacitors. All resistors are of the low noise metal film variety. The switches for gain and load settings have gold plated contacts.Because of the small outer dimensions the Black Cube can be placed next to  the turntable. This minimizes loss due to cable lengths.  The low noise regulated external power supply is connected permanently to the audio section to minimize the number of contacts in the signal path.

Lehmann audio always pays special attention to details: the cable between power supply and audio section is shielded. The cases of both the power supply and the audio section are made of nonmagnetic materials and the case of the audio section is even equipped with a top cover coated with a special anti-resonance treatment.

Technical Data:

Gain at 1kHz: MM – 40dBMC – 61dB
Signal to Noise: MM – 77dB MC – 69dB
Input Capacitance: 100pF
Input Impedances: 47 kΩ, 470Ω, 100Ω (Switchable)1 Slot For A Custom Load
Output Impedance: <100Ω
RIAA Filter: Passive Equalization Between Two Linear Gain Stages
Inter-Channel Mismatch: Typ. 0.5dB
Power Consumption: < 3W With External Regulated Power Supply (2x15V DC)
Dimensions (W x D x H): Audio Section: 113 x 108 x 45mm³ Power Supply: 110 x 68 x 55mm³
Weight: App. 0.7kg

Lehmann Black Cube £355 delivered
