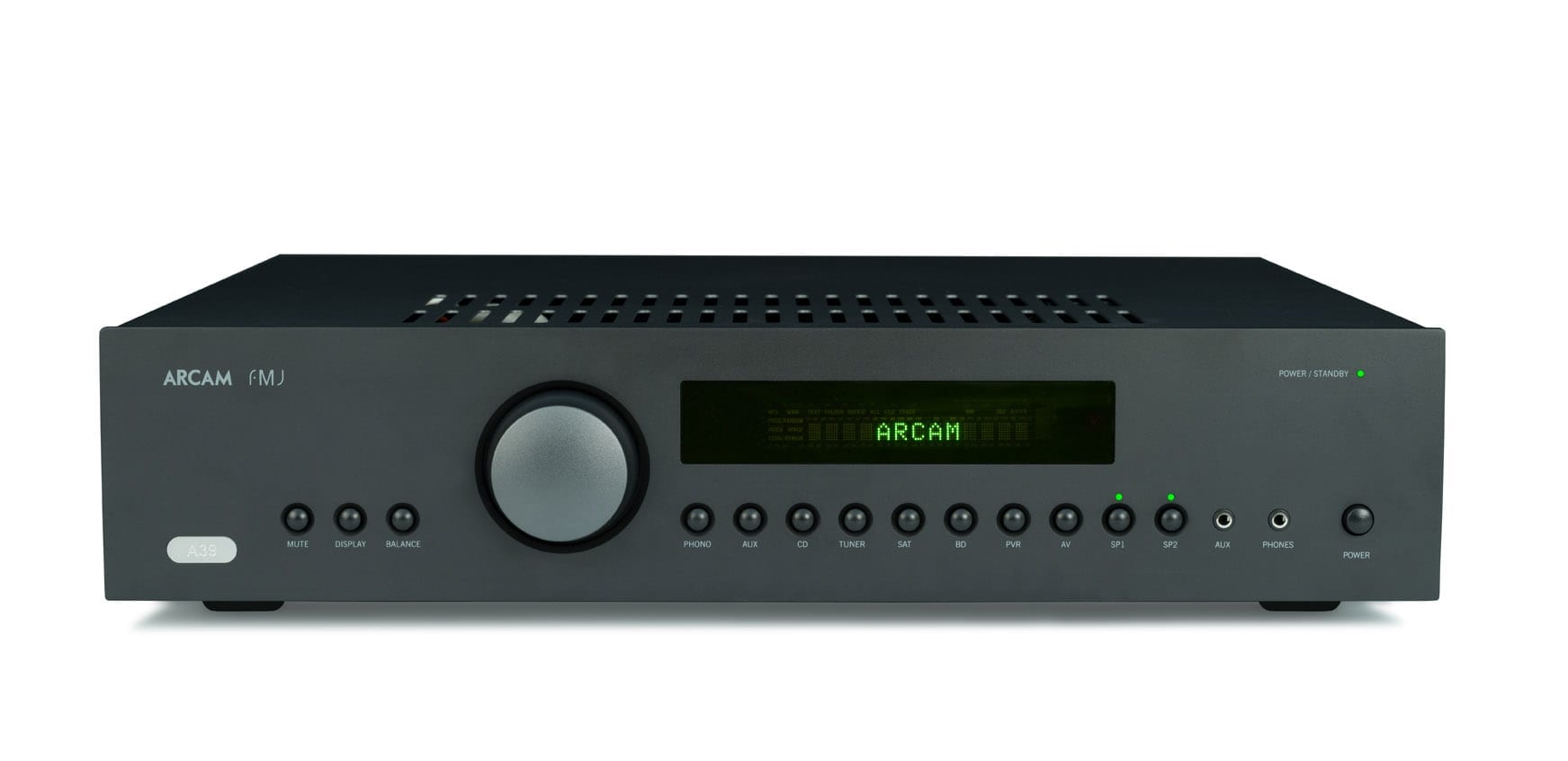

Arcam FMJ A39

Arcam FMJ A39

Third up the range, the Class G Arcam A39 is an impressively powerful beast.

In fact the A39 has been designed “to leapfrog the competition” with a massive 120 watts per channel into 8 ohms and 240 into 4 ohms. It delivers 20 watts in pure class A mode while allowing for huge extra power reserves from our latest generation class G topology that is both clever and efficient. During normal operation, distortion is measured in less than one part per million so that this massive power is deliver with total control and finesse.

With a class G amplifier, toroidal based power supply, acoustically damped chassis, paralleled transistor output stages and exceptionally low levels of distortion and noise, the A39 is capable of reproducing music with all its original authority and detail. Rest assured you will be hearing the music just as the artist intended.

There is a very respectable moving magnet phono stage too.

Arcam A39 £1249 delivered

Technical Specifications

Continuous power output (20Hz—20kHz at 0.5% THD), per channel

  • Both channels, 8Ω, 20Hz—20kHz: 120W
  • Single channel, 4Ω, at 1kHz: 240W
  • Harmonic distortion, 80% power, 8Ω at 1kHz: 0.001%

InputsPhono (MM) cartridge:

  • Input sensitivity at 1kHz: 5mV
  • Input impedance: 47kΩ + 270pF
  • Frequency response (ref. RIAA curve): 20Hz—20kHz ± 1dB
  • Signal/Noise ratio (Awtd) 50W, ref. 5mV input: 80dB
  • Overload margin, ref. 5mV at 1kHz: 20dB

Preamplifier output

  • Nominal output level: 900mV
  • Output impedance: 240Ω

Inputs:

  • Nominal sensitivity: 1V
  • Input impedance: 10kΩ
  • Maximum input: 4.6V
  • Frequency response: 20Hz—20kHz ± 0.2dB
  • Signal/noise ratio (Awtd) 50W, ref. 1V input: 105dB

Headphone output

  • Maximum output level into 600Ω: 4V
  • Output impedance: 1Ω
  • Load range: 16Ω—2kΩ

Accessory power output

  • 2.1mm DC connector: 6V, 1A

General

  • Mains voltage: 110–120V~ or 220–240V~
  • Power consumption (maximum): 1kW
  • Dimensions W x D x H (including feet): 433 x 425 x 100mm
  • Weight (net): 11.5kg
  • Weight (packed): 13.2kg

Supplied accessories

  • Mains lead
  • CR902 remote control
  • 2 x AAA batteries
  • Accessory power cable
