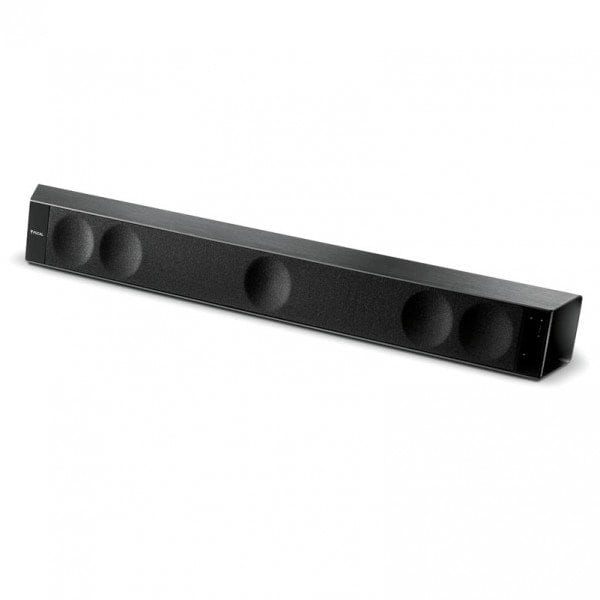

Focal Dimension 5.1 soundbar

Focal Dimension 5.1 soundbar

When a traditional soundbar depends on the room spatialisation, Dimension offers an immersive 5.1 sound with realistic and precise sound effects not only in the high frequencies.

With a soundstage of 4m and a maximum power of 450W, Dimension performances are equivalent to a very good high-fidelity audio system and are perfect for rooms even measuring over 50m2.

Think this sounds like exaggeration? Best we play the the Dimension!

It has sufficient low end power to be used on its own or can be integrated with a couple of other Focal subs.


Dolby DigitalDTS Digital SurroundHDMI


  • Natural and high definition sound
  • High dialogues intelligibility
  • Dynamic and coherent reproduction of the whole frequency spectrum
  • Optimal integration (wall-mounted or on a furniture)
  • 2 x HDMI™ integrated
  • Type 5-channel sound bar
    Speaker drivers 5 ultra-flat speaker-drivers made of paper cones – 315/16″ (10cm)
    Integrated amplification 6-channel 450 Watts
    Frequency response (+/- 6 dB)

    Soundbar alone

    50 Hz – 25 kHz
    Inputs 2 x HDMI™ (OUT/IN)

    Digital Optical Toslink

    Analogue 3.5 mm Jack

    Subwoofer outputs Dimension Sub Out: Powered output dedicated to Dimension Sub

    Sub Line Out: Low-Level output compatible with all amplified subwoofers

    Modes HDMI ARC™ (Audio Return Channel)

    HDMI CEC™ (Consumer Electronics Control)

    Auto Power on HDMI™ inputs

    Adjustable bass

    Adjustable Sound and Picture synchronisation

    Night mode

    Optimum acoustic integration through settings on the rear panel:

    – Soundbar positioning

    – Room acoustics

    – Sweet spot

    Soundbar on furniture

    (Width x Depth x Height)

    451/4×41/2×41/2″ (115.5 x11.5×11.5cm)
    Wall mounted Soundbar

    (Width x Depth x Height)

    451/4×29/16×515/16″ (115.5 x6.5 x14.7cm)
    Weight 12lbs (5,5kg)


Focal Dimension Soundbar £889 with free delivery
