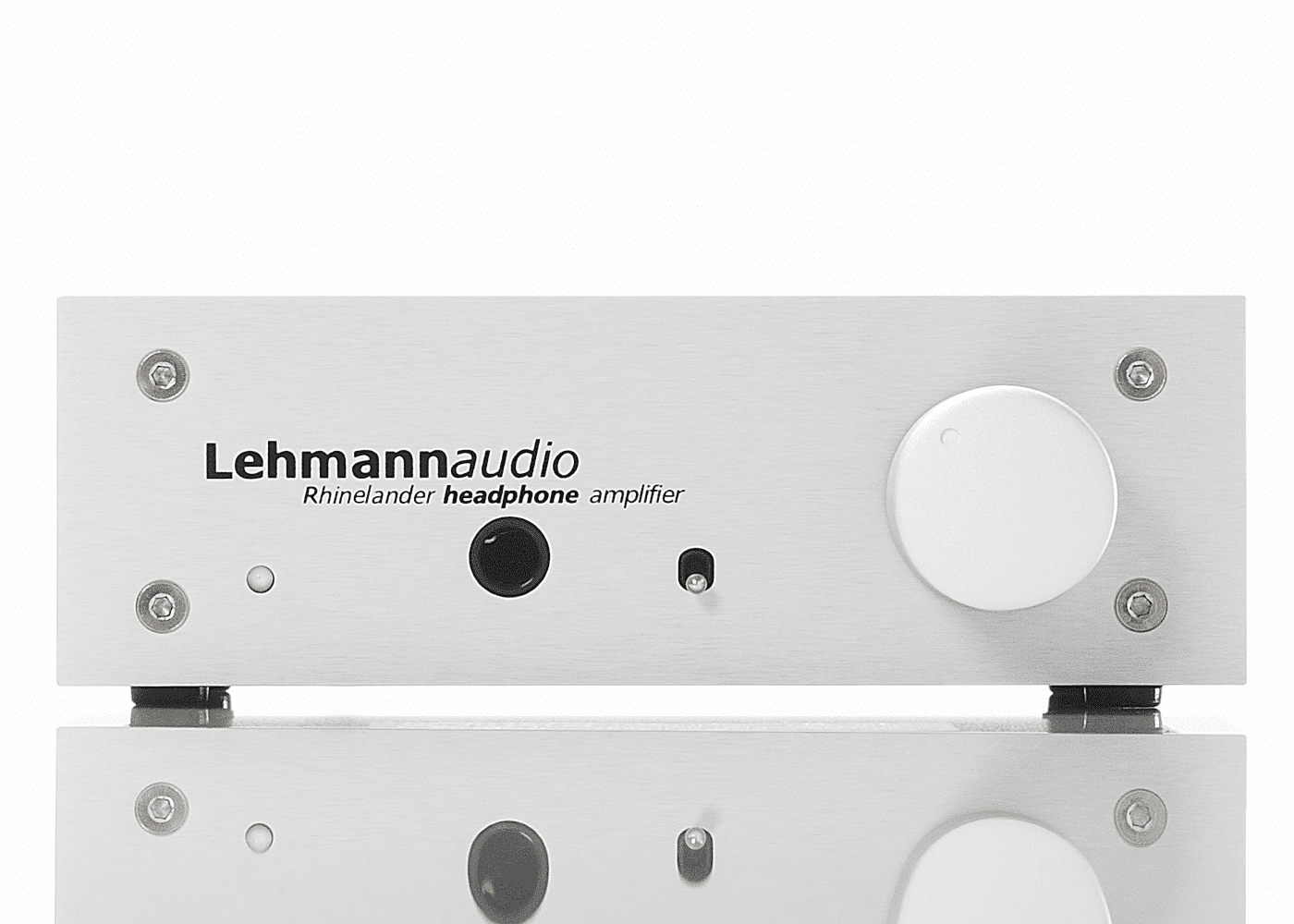

Lehmann Rhinelander Headphone Amp

Lehmann Rhinelander Headphone Amp

The popular Lehmann Rhinelander headphone amplifier is based on the legendary Black Cube Linear by Lehmannaudio, which is used by well-known industry professionals such as A.J. van den Hul, Andreas Spreer (TACET) and Maarten de Boer (The Masters). Now you can experience a huge part of the Linear’s transparency, tonal balance and micro-detail, and at only a fraction of the cost. The Rhinelander is placed in the highly-competitive sector of ambitioned, budget-conscious, audiophile listeners.

Moreover, with some mild tweaks the Rhinelander can also be used as a single source pre-amplifier, like the superior Linear model. The Rhinelander is equipped with two inputs and a relays source selection. If you don’t need the second line input, you can reconfigure the input jack to a output. All you need to do is to replace two jumpers.  Even with entry-level devices, Lehmannaudio puts a lot of effort into details.

Key Features:

  • Discrete Zero Global Feedback output stage with high quiescent current ready to drive most headphones or long cable runs
  • Audiophile voltage amplifier stage
  • Single source preamplifier reconfigurable to “headphone only” mode with two line source inputs by replacing just two jumpers
  • Relays source selection / mute operation
  • Only MKP caps in the signal path for perfect transient response and ambience reproduction
  • Gain jumper selectable 6dB/20dB
  • Hand selected potentiometer with very good channel tracking
  • Double sided audio board
  • External AC power supply
  • Ultra fast rectifying diodes
  • Low ESR electrolytic caps
  • Low-noise, regulated power supply
  • Gold plated RCA connectors
  • Original Neutrik headphone jack with gold plated contacts
  • Anodized aluminium faceplate and knob

Technical Data:

Input Impedance: 47kΩ
Maximum Gain: 6dB, 20dB(Jumper Selectable Inside)
Frequency Response: 20Hz (-0.3dB) – 35kHz (-1dB)
Signal-to-Noise Ratio: >95dB at 0dB Gain
Channel Separation: >70dB / 10kHz
Output Power: 120 mW/33 ohms100 mW/330 ohms
Output Impedance:
Power Consumption: Appx. 3W, Via External A/C PSU
Audio Connectors: Neutrik Headphone Jack 1/4″ PlugRCA Jacks With Gold Plates ContactsLine Output Is Muted When Headphones In Use
Face Plate: Black or Silver
Dimensions (W x D x H): 135 x 110 x 47mm
Weight: 0.4kg

Silver Rhineland £335.00 delivered

Black Rhineland £335.00
