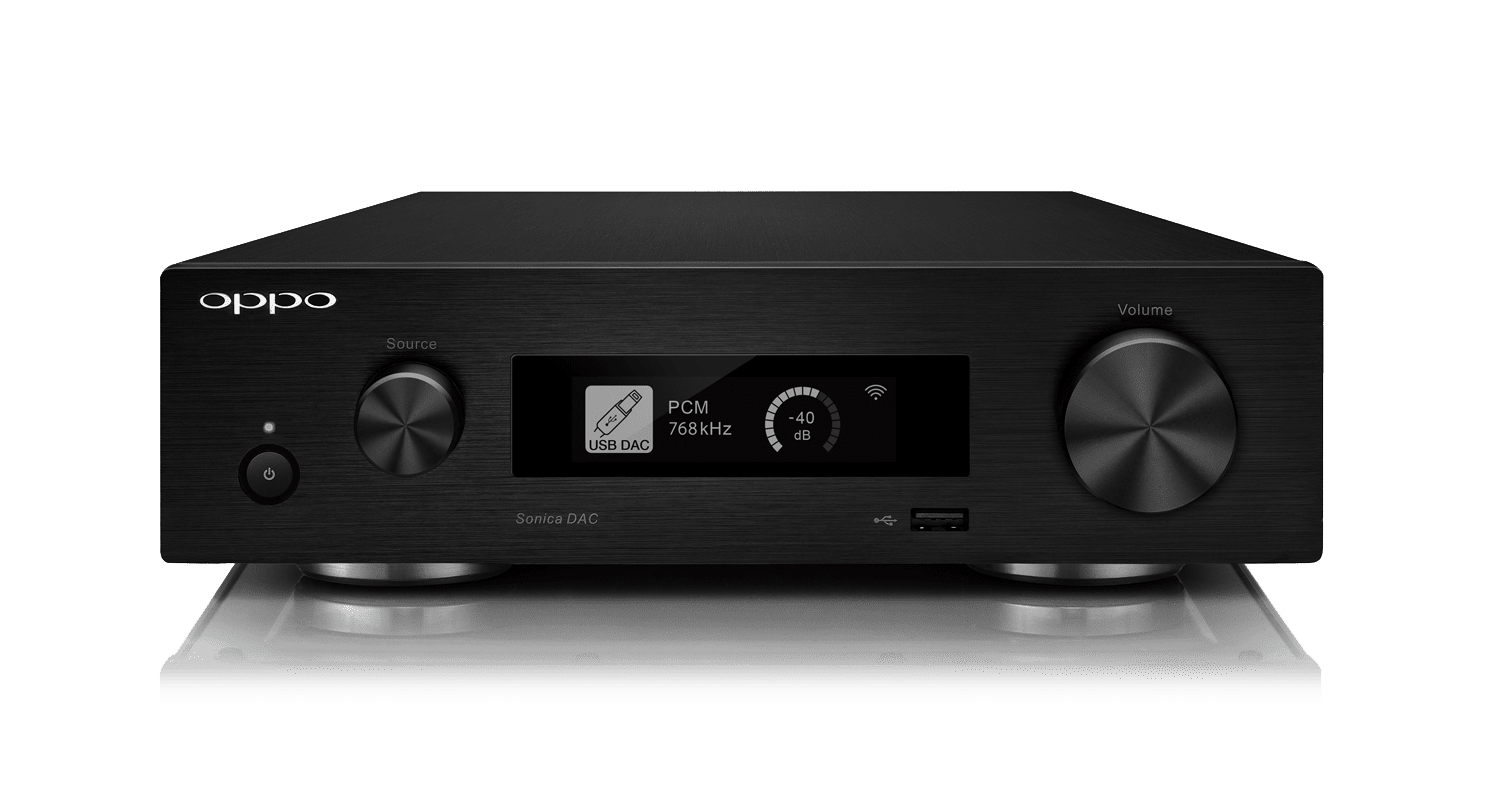

Oppo Sonica DAC & network streamer

Oppo Sonica DAC & network streamer

The Sonica DAC & streamer is an impressively flexible talented performer at an amazing price.

It can be used as a DAC via coaxial, optical, bluetooth or USB connection.  It connects to a network via wi-fi or wired ethernet, accessing music via UPnP / DLNA

It can have fixed or variable output, controlled via excellent iOS or Android ‘app’. Basically, it does just about everything, manages to sound very good indeed, has a reassuringly chunky great toroidal power supply and costs just

£799

We have it on demonstration and in stock.

General
Dimensions (W x H x D) 10.0 x 3.0 x 12.2 inches, 254 x 76 x 360 mm
Weight 10.4 lbs, 4.7 kg
Power Supply AC 110-120 V ~ / 220-240 V ~ 50/60 Hz
Power Consumption 30 W (operation), 0.5 W (standby)
Trigger Input 3.5 V – 15 V, 10 mA minimum
Trigger Output 12V, 100 mA maximum
Operating Temperature 41°F – 95°F, 5°C – 35°C
Operating Humidity 15% – 75% No condensation
USB Audio Input (USB B Type)
Input Format Stereo PCM, Stereo DSD (DoP v1.1 or native)
PCM Sampling Frequencies 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz, 705.6 kHz, 768 kHz
PCM Word Length 16-bit, 24-bit, 32-bit
DSD Sampling Frequencies 2.8224 MHz (DSD64), 5.6448 MHz (DSD128), 11.2896 MHz (DSD256), 22.5792 MHz (DSD512, native mode only)
Profile USB 2.0, USB Audio 2.0
Coaxial and Optical Digital Audio Inputs
Input Format Stereo PCM, Stereo DSD (DoP v1.1 or native)
Sampling Frequencies 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Word Length 16-bit, 24-bit
DSD Sampling Frequencies 2.8224 MHz (DSD64)
AUX Audio Input
Input Impedance 10k Ohm
Maximum Input Level 2 Vrms
USB Ports (Type A)
Profile USB 2.0, mass storage only
Audio Format Support AAC, AIF, AIFC, AIFF, APE, FLAC, M4A, M4A (Apple Lossless) ALAC, OGG, WAV, WMA, DSF, DFF
Maximum Sampling Rate PCM up to 192 kHz / 24-bit, DSD up to 2.8224 MHz (DSD64)
Wireless Standard
Wi-Fi 802.11.a/b/g/n/ac
Bluetooth Bluetooth 4.1

DAC Performance Specifications

Specification XLR Output RCA Output
Output Level 4±0.4 Vrms 2±0.2 Vrms
Frequency Response 20 Hz – 160 kHz (+0/-2.4 dB)20 Hz – 20 kHz (+0/-0.04 dB) 20 Hz – 160 kHz (+0/-2.4 dB)20 Hz – 20 kHz (+0/-0.04 dB)
THD+N at 1 kHz (A Weight, 20 Hz- 20 kHz) < -115 dB < -115 dB
Channel Separation > 120 dB > 120 dB
Signal-to-Noise Ratio(A Weight, 20 Hz- 20 kHz) > 120 dB > 120 dB
Dynamic Range(1 kHz -60 dBFS, A Weight, 20 Hz- 20 kHz) > 120 dB > 120 dB
