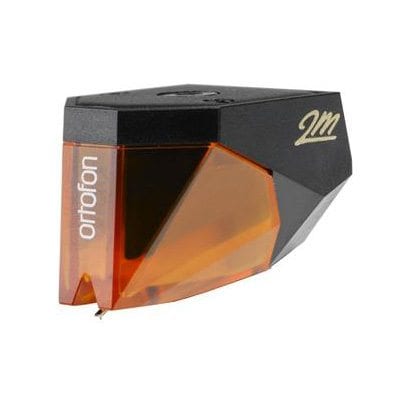

Ortofon 2M Bronze

Ortofon 2M Bronze

The 2M Bronze features a nude Fine Line diamond stylus, which is particularly suited for demanding applications. The slim profile of the Fine Line stylus will track even the highest frequency information, making it a must for discerning listeners. Additionally, its larger footprint ensures reduced distortion and record wear.

The cartridge body used for the 2M Bronze and 2M Black is manufactured from a newly-developed Noryl plastic/glass combination, a revolutionary material which ensures high rigidity while eliminating unwanted resonances. The 2M Bronze and 2M Black use a special upgraded engine, featuring split pole pins with a silver-plated copper wire.

The upshot is that you are entering quite serious MM territory.

Technical Data:

Output Voltage (at 1kHz, 5cm/sec): 5mV
Channel Balance at 1kHz: 1dB
Channel Separation at 1kHz: 26dB
Channel Separation at 15kHz: 15dB
Frequency Range (at -3dB): 20 Hz – 29 kHz
Frequency Response 20Hz – 20kHz: +2 / -0dB
Tracking Ability at 315Hz: Typically 80μm
Compliance, Dynamic, Lateral: 22μm / mN
Stylus Type: Nude Fine Line
Stylus Tip Radius r / R: 8 / 40μm
Tracking Force Range: 1.4 – 1.7g (14 – 17mN)
Recommended Tracking Force: 1.5g (15mN)
Tracking Angle: 20º
Internal Impedance / DC Resistance: 1.2kΩ
Internal Inductance: 630mH
Recommended Load Resistance: 47kΩ
Recommended Load Capacitance: 150 – 300pF
Cartridge Colour Body / Stylus: Black / Bronze
Cartridge Weight: 7.2g
Replacement Stylus Unit: Stylus 2M Bronze
Accessories: Stylus Brush
Screwdriver
Screws
TFG

Ortofon 2M Bronze £275 delivered
