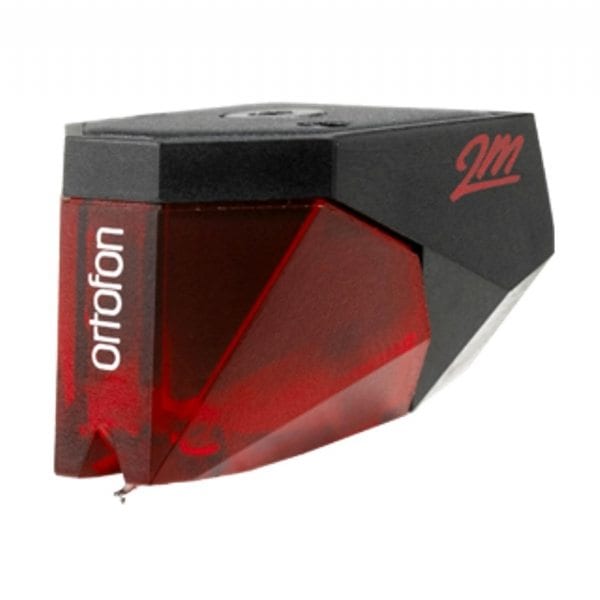

Ortofon 2M Red

Ortofon 2M Red

An excellent, affordable Moving Magnet cartridge.

Blue and black are both better but cost a lot more.

Technical Data

Output Voltage (at 1kHz, 5cm/sec) 5.5mV
Channel Balance at 1kHz 1.5dB
Channel Separation at 1kHz 22dB
Channel Separation at 15kHz 15dB
Frequency Range (at -3dB) 20 Hz – 22 kHz
Frequency Response 20Hz – 20kHz +3 / -1dB
Tracking Ability at 315Hz Typically 70µm
Compliance, Dynamic, Lateral 20µm / mN
Stylus Type Elliptical
Stylus Tip Radius r / R 8 / 18µm
Tracking Force Range 1.6 – 2.0g (16 – 20mN)
 Recommended Tracking Force 1.8g (18mN)
 Tracking Angle 20º
Internal Impedance / DC Resistance 1.3kO
 Internal Inductance  700mH
 Recommended Load Resistance  47kO
 Recommended Load Capacitance  150 – 300pF
 Cartridge Colour Body / Stylus  Black / Red
 Cartridge Weight  7.2g
 Replacement Stylus Unit Stylus 2M Red
 Accessories Stylus brush
Screwdriver
Screws

Ortofon 2m Red £84.99 delivered
